產品介紹：
該機器採用氣動系統來切断尼龍、金屬或塑膠閉口拉鏈(您可以選擇一種),並且它具有檢測系統來檢查下止,上止是否缺失以及拉頭形狀及其商標是否正確,如果拉鏈有任何缺陷,它將通通吹氧裝置將瑕疵拉鏟與好的拉链與分開存放的功能。
機器優勢：
1. 透過氣動切斷後拉鏈切斷面不容易脫邊,可透過人機螢幕設定可以改變機器速度,並採用特殊裝置可將每條拉頭固定在同一個位置方便檢测.
2. 此機採用人機介面控制,操作簡單,機器在自動運行中,其中任何一種原因停機時,故障畫面顯示在螢幕上,方便故障排除,並且可以在故障履歷中查詢故障問題,發生時間及故障發生時間.
3. 此機的計數功能包括連續切斷及分段計數功能,透過分段計數可以節省包裝時需重複計數造成時間浪費的問題,
4.本機可以選擇標準算法檢测系統(IS),其操作操作設定簡單,可以檢测上止及下止是否有缺失及拉片的形狀和拉片上的商標是否正確,也可以選擇人工智能算法檢測系統(A),透過A人工智能系統可以提高檢測拉鏈通用性及增加額外定製檢测項目
5.本機可選裝打孔感應裝置,需檢查的拉鏈可先利用我公司YFM-600A1全自動人工智能長碼拉鏟檢測機進行長碼拉鏈全方位檢測長碼拉鏈,在拉鏈瑕疵處打孔,再透過此機將有瑕疵的拉鏈分類,以達到拉鏈全檢的功能。
6.超高速切斷檢測，每分鐘可達到60條以上切斷檢測（以拉鏈長度20公分長度估算)。

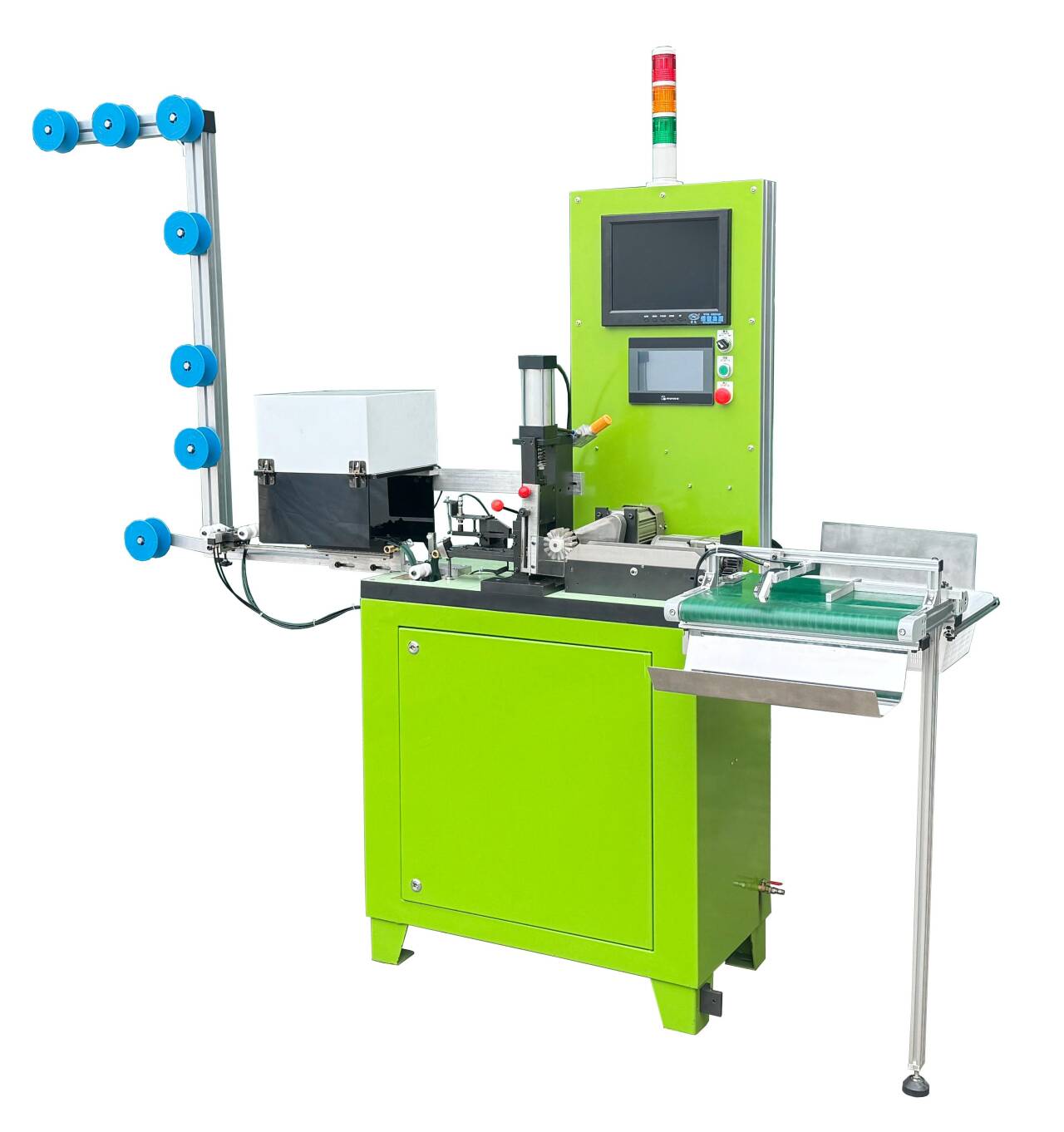

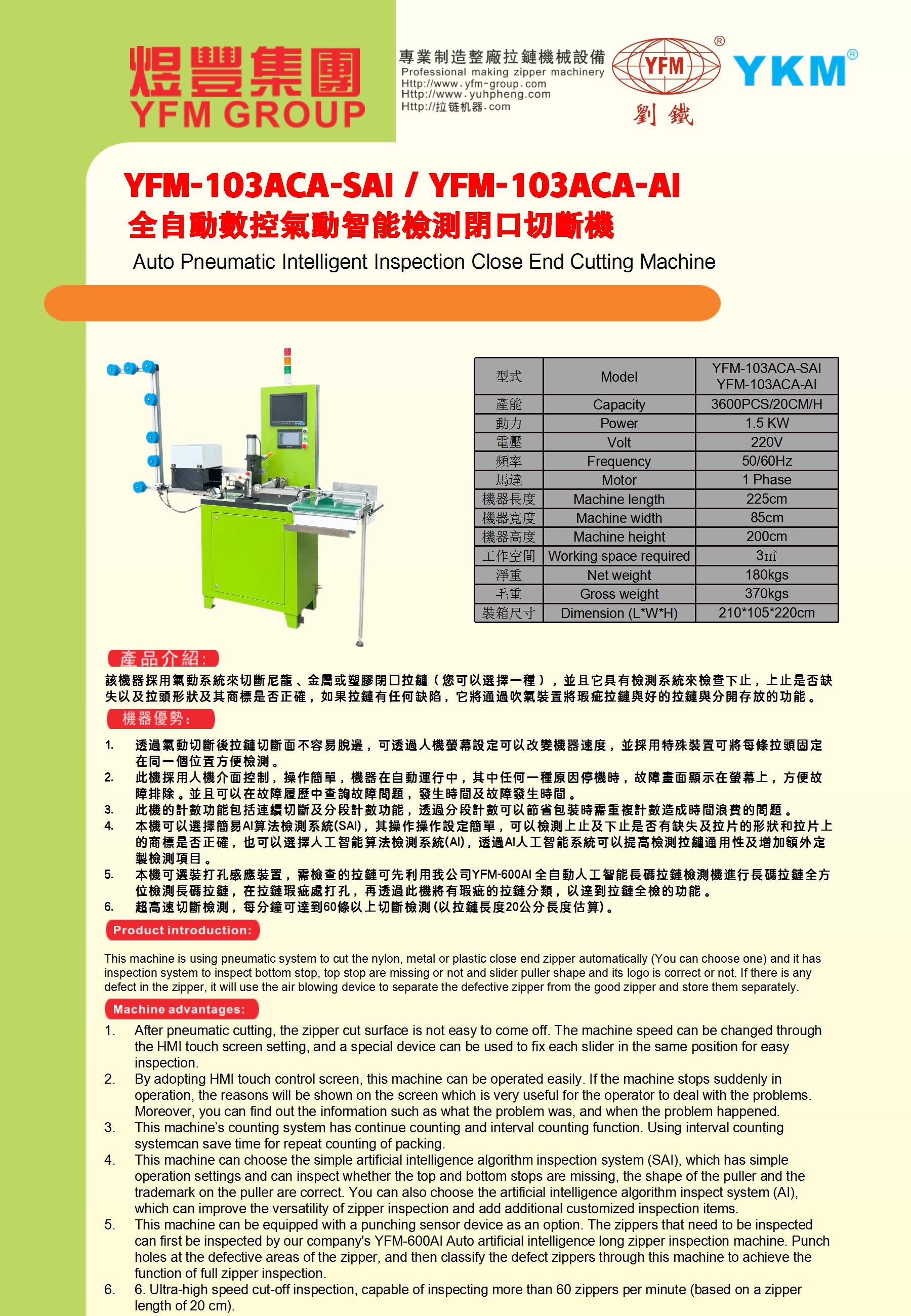

Product introduction:
This machine is using pneumatic system to cut the nylon, metal or plastic close end zipper automatically (You can choosel one) and it has inspection system to inspect bottom stop, top stop are missing or not and slider puller shape and its logo isl correct or not. If there is any defect in the zipper, it will use the air blowing device to separate the defective zipper from the good zipper and store them separately.
Machine advantages:
1. After pneumatic cutting, the zipper cut surface is not easy to come off. The machine speed can be changed through the HMI touch screen setting, and a special device can be used to fix each slider in the same position for easy inspection.
2. By adopting HMI touch control screen, this machine can be operated easily. If the machine stops suddenly in operation, the reasons will be shown on the screen which is very useful for the operator to deal with the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.
3. This machine's counting system has continue counting and interval counting function. Using interval counting system can save time for repeat counting of packing.
4.This machine can choose the standard algorithm inspection system (IS), which has simple operation settings and canl inspect whether the top and bottom stops are missing, the shape of the puller and the trademark on the puller are correct. You can also choose the artificial intelligence algorithm inspect system (Al), which can improve the versatility of zipper inspection and add additional customized inspection items.
5. This machine can be equipped with a punching sensor device as an option. The zippers that need to be inspected canl first be inspected by our company's YFM-600Al Auto artificial intelligence long zipper inspection machine. Punch holesl at the defective areas of the zipper, and then classify the defect zippers through this machine to achieve the function of full zipper inspection.
6. Ultra-high speed cut-off inspection, capable of inspecting more than 60 zippers per minute (based on a zipper length ofl 20 cm).
